Description

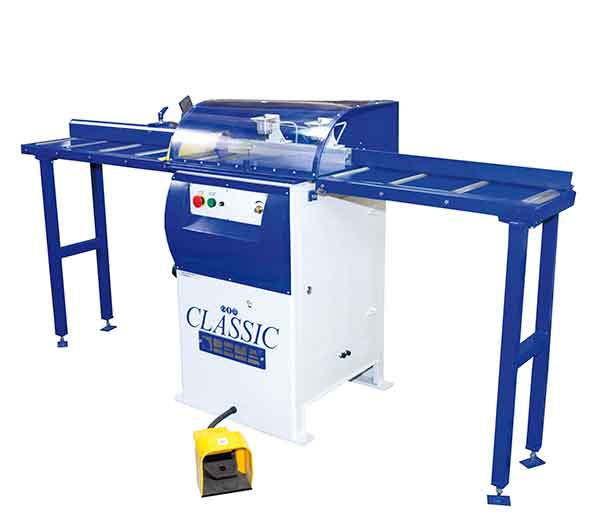

REMA Pneumatic Crosscutting Saw Type 35C
| Technical Data | |
|---|---|
| Saw Blade Diameter | 350 mm |
| Max: Sawing Height | 70 mm |
| Max: Sawing Width | 150 mm |
| Motor Power | 3 kW |
| Spindle Rotation Speed | 4500 rpm |
| Spindle Tip Diameter | 30 mm |
| Max. Saw Blade Stroke | 100 mm |
| Freq of Operating Cycles (stepless regulation) | 0-28 cycles/min |
| Extraction Outlet Diameter | 125 mm |
| Normal Pressure of Compressed Air | 0,6 MPa |
| Air Compressed Request | 6 m3/h |
| Air Request (Extraction System) | 1300 m3/h |
| Height of Table Surface | 850 mm |
| Weight | 160 kg |
