Description

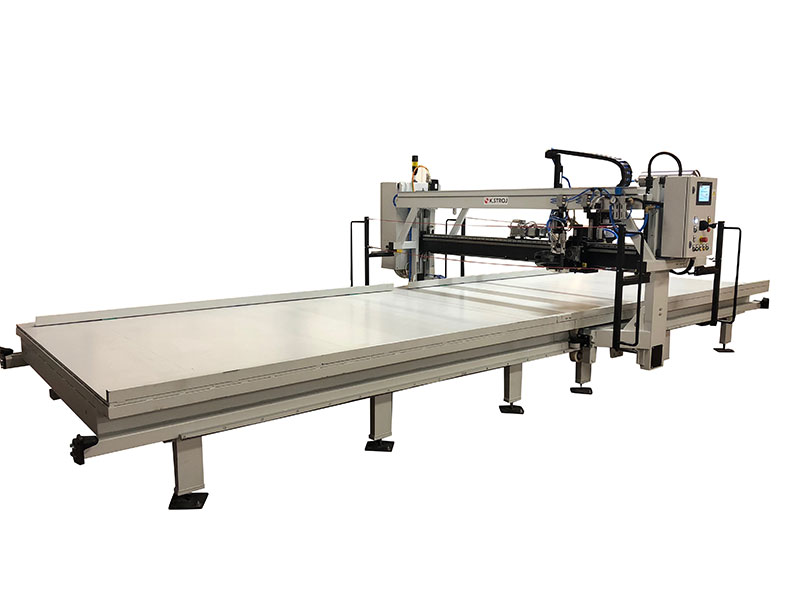

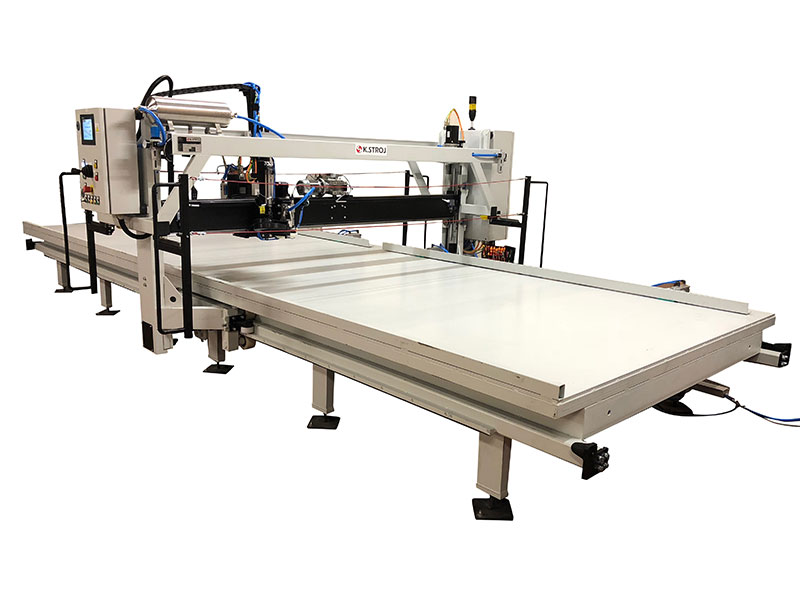

- A fully automatic gantry style machining centre that can be equipped with a range tools for sawing, milling, drilling and nailing operations.
- Sawing unit with 90° rotation for nesting of sheet materials in the X and Y axis
- Milling unit for the maching of window openings and angle cuts
- Drilling unit for creating holes required for electrical and plumbing installations

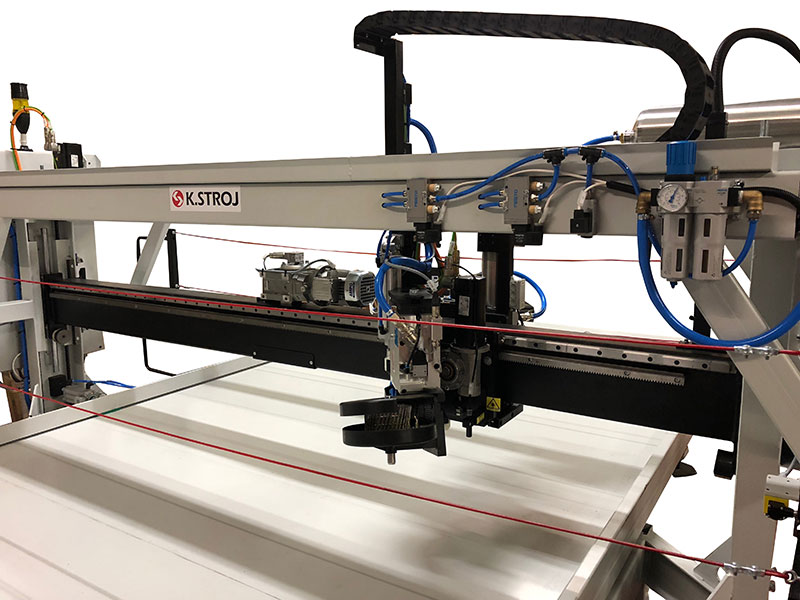

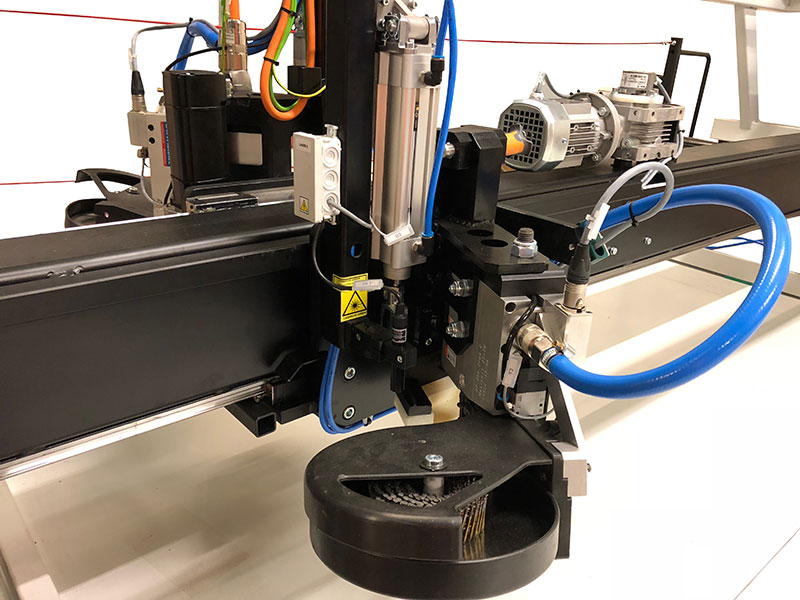

- Nailing guns for nailing boards to the frame to produce wall panels
- Working length up to 12000mm, working width up to 3000mm. Available with mechanical, pneumatic and vacuum clamping of the work piece.
Specs
- Two or three axis servo control
- Pneumatic stroke of working tools
- Manual, semi-auto and self teach fully automatic working mode
- Schneider touch screen operater panel with human interface
- WIFI connnection TELE-SERVICE: Secure online support, fault detection, fault elimination and maintenance support
Technical
| Rated Power | 5 kW |
| Pressure | 6 bar |
| Voltage | 3×400/230V |
| Frequency | 50 Hz |
| Weight | 2,2t |
