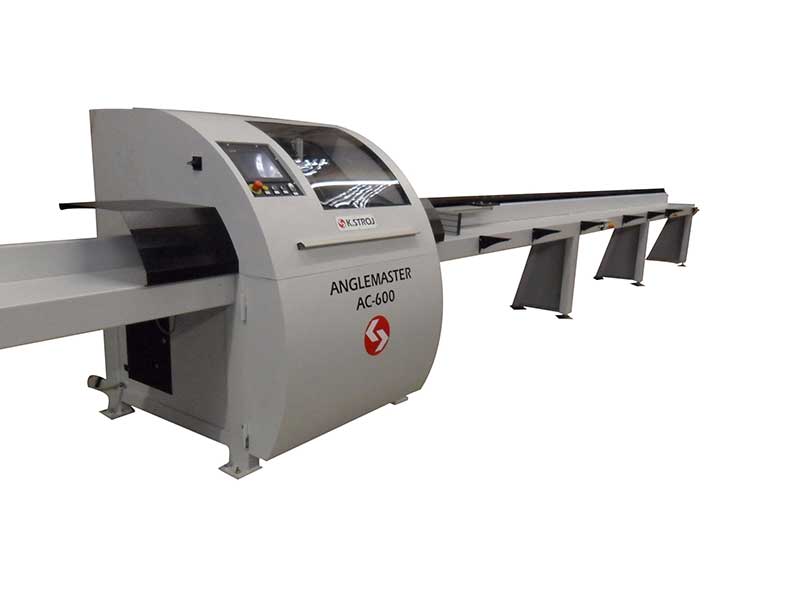

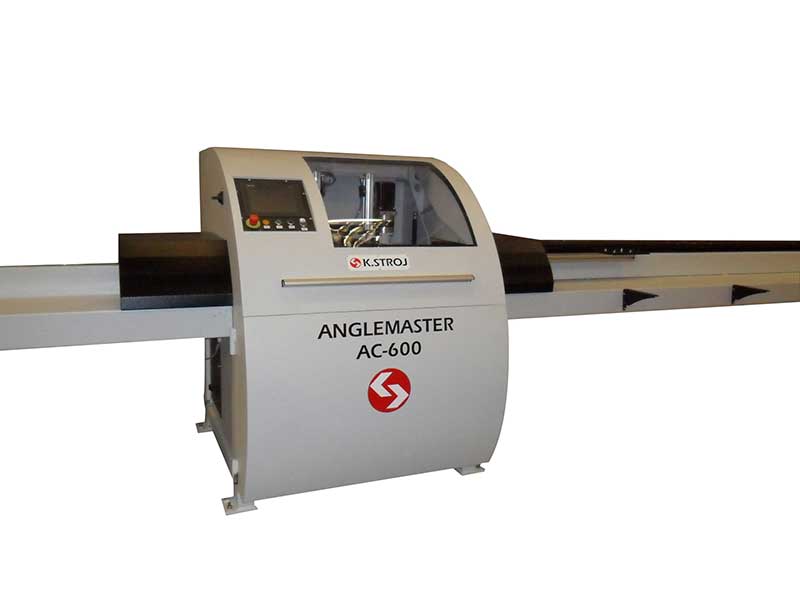

Anglemaster Automatic Cross Cutting Machine Type AC 600
Anglemaster Automatic Cross Cutting Machine Type AC 600

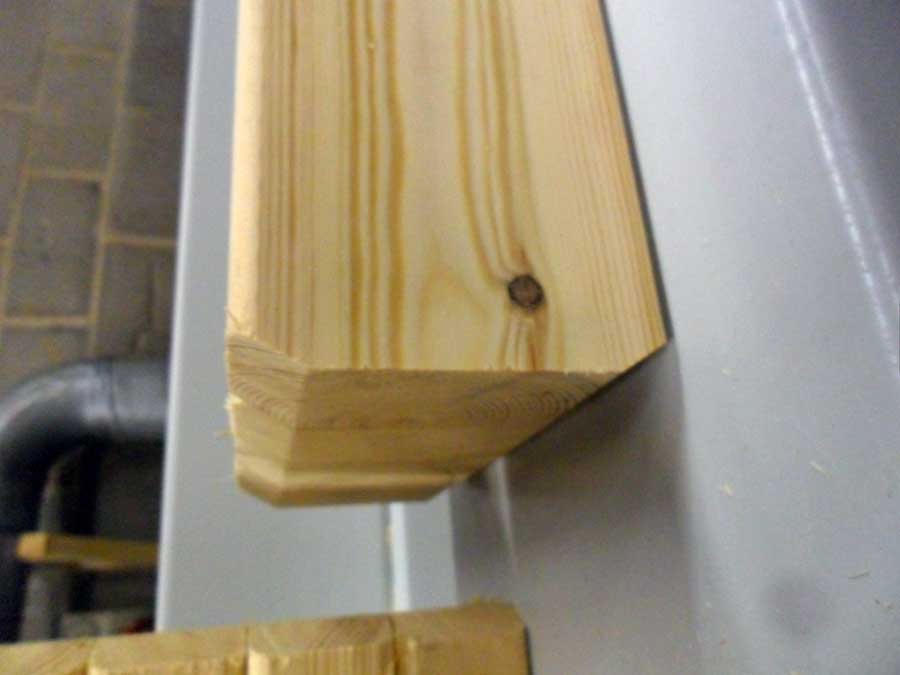

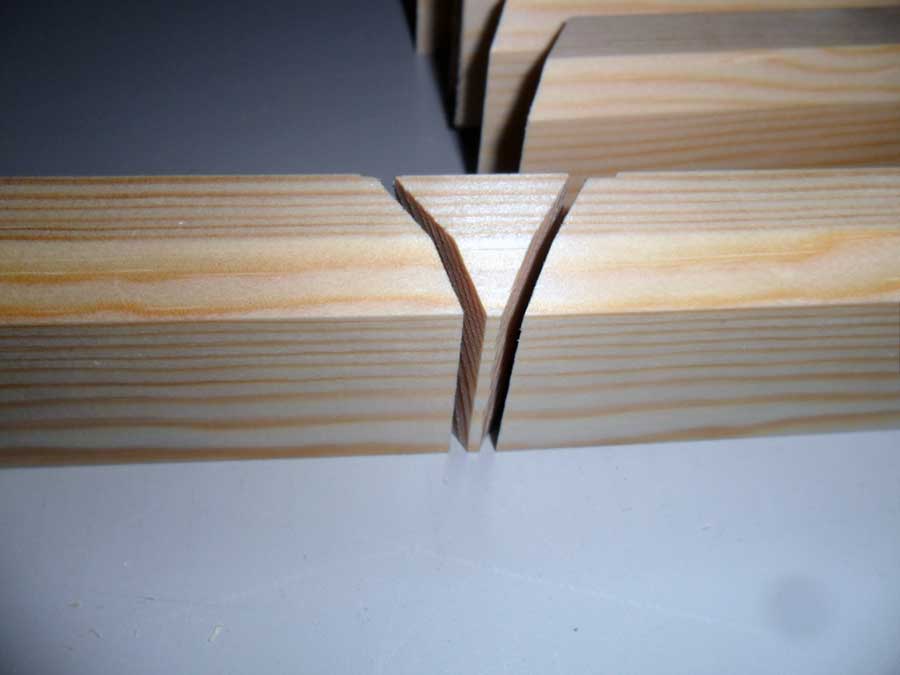

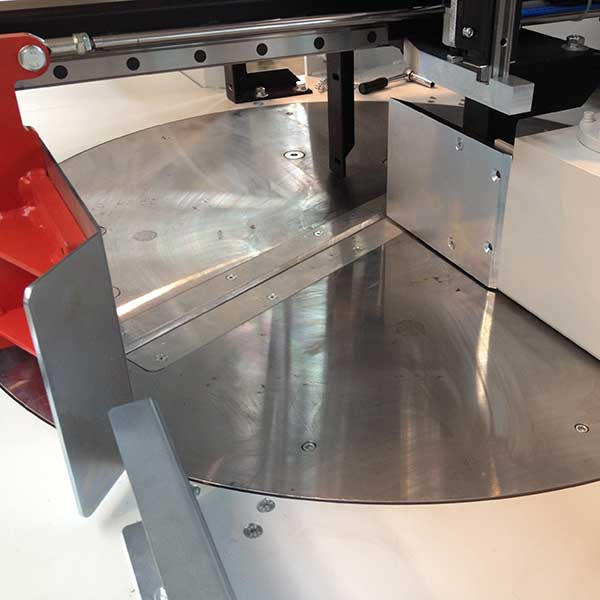

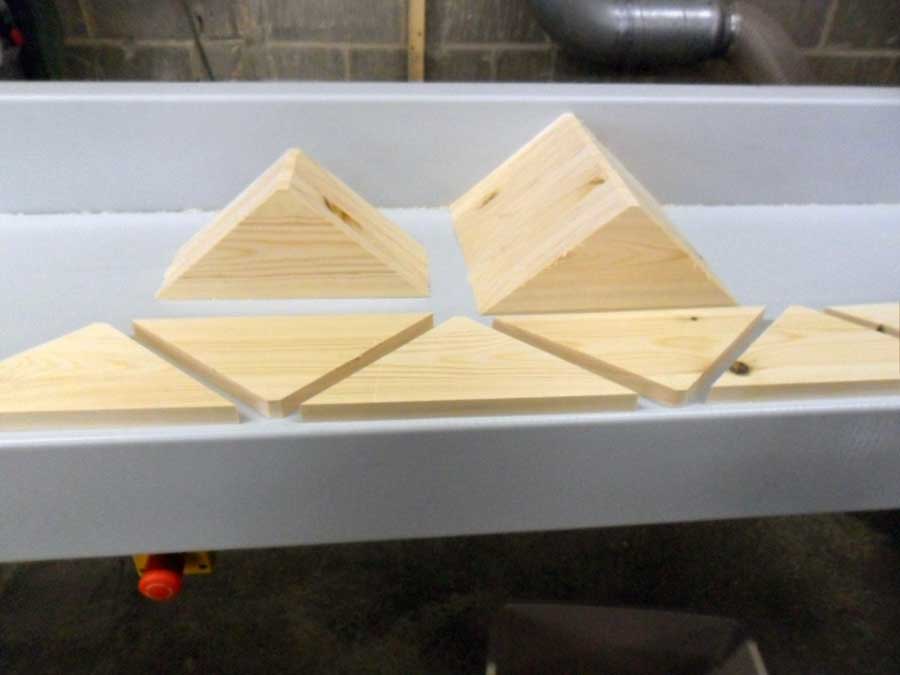

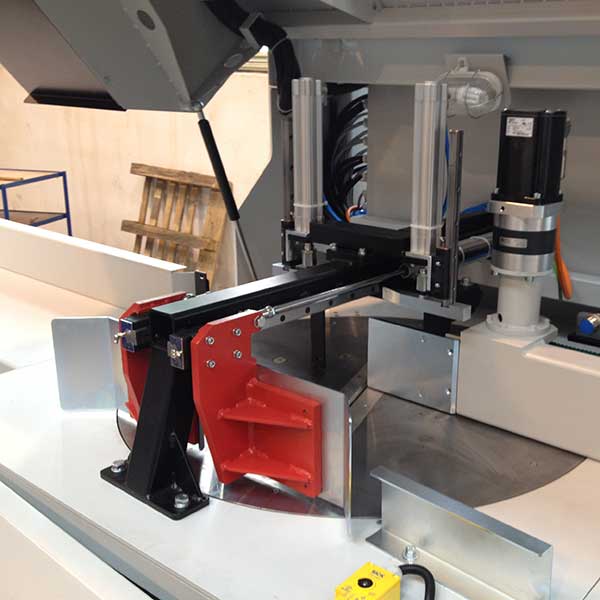

The Anglemaster AC600 is a highly productive automatic crosscutting machine for repetitive cutting of straight or angled components. Build quality, simplicity of programming and total flexibility are the standard out features of this heavy duty fully programmable machine. Fast and precise the rotating table is precision engineered offering high levels of accuracy.
Optional: Photocell sensor for automatic length recognition with full optimising software for maximum length, priority length, minimum waste and volume. Photocell sensor for use with fluorescent crayon for defecting and removing defective parts.
Schneider control system comprising of an industrial 10.5” touch screen controller with integrated software and graphical display, inverter, servo-motor and “PRO-MOTION” heavy duty belt feeding system.
Schneider PLC control with self-diagnostic error messages and sensor position monitoring.
| TELE-SERVICE | Secure online support, fault detection, fault elimination and maintenance support |

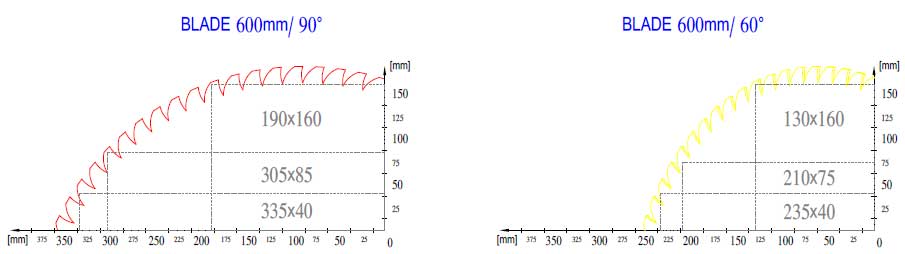

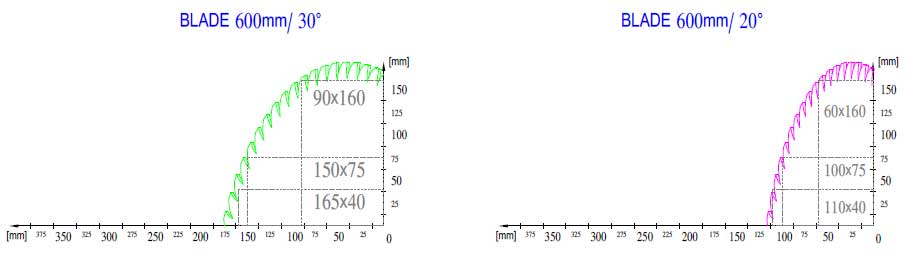

| Angle range of saw blade | -70 – 0 – +70 |
| Servo controlled positioning | Accuracy 0.01mm |
| In-feed table | 6 metre capacity, 400mm wide |
| Out-feed table and fence | 3 metre, 400mm wide (Customised on request) |
| Servo motor control | To PRO-MOTION feed system |
| Positioning speed | 60m/min |
| Vertical clamping cylinders | Two pneumatic, with independent pressure control |
| Lateral clamps | Two pneumatic |
| Safety hood | Hinged, with electrical interlock |
| Pusher | With optional trim cut capability |

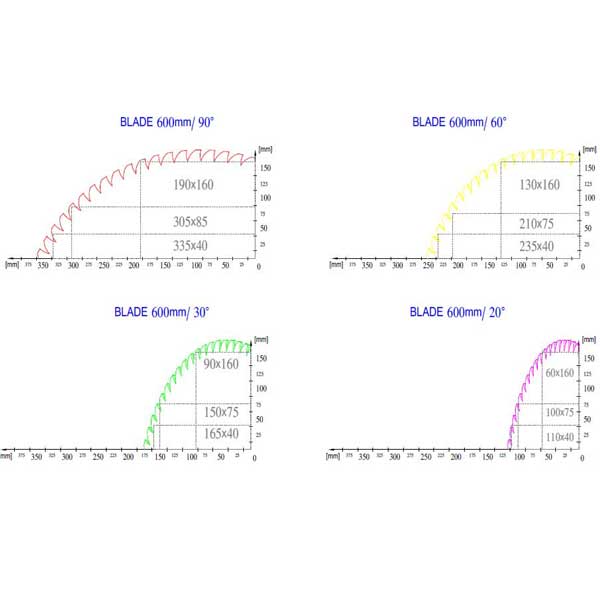

| HM (TCT) saw blade | 600mm diameter Z96 |
Standard Features
- Siemens main motor: 7.5kw (10hp)
- Automatic: Star/delta switch
- Motor: Overload relay
- Doors: Safety contacts
- Extraction outlets: 150mm diameter
- Saw blade feed speed: Manually adjustable
| Air consumption | 7 litres per cycle, constant 6 bar, 10mm diameter supply hose |
| Electrical requirement | 9.8kw, 32amps 3-phase, neutral and earth |
| Dust extraction requirements | 2400 cfm |
The K.Stroj range of automatic crosscutting machines are well established in the UK market, first introduced in 2003 they are now in operation in many of the leading manufacturers nationwide.
Pallet & case manufacturers
Furniture manufacturers
Garden building manufacturers
Timber frame manufacturers
Timber suppliers
Renowned for its build quality and premium German made component parts this range of crosscutting machines have proven to be extremely reliable, consistently delivering a high level of accuracy and production.
All Anglemaster Automatic Crosscutting Machines are supplied with a 2 year warranty as standard. Subject to 12 month annual service, chargeable.
